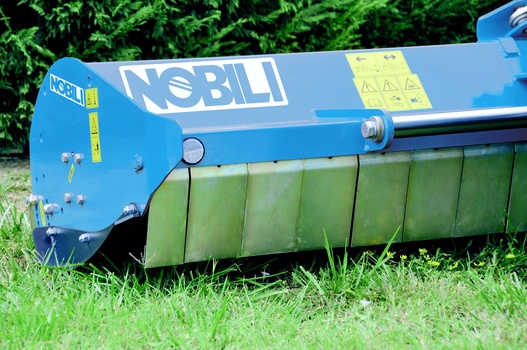

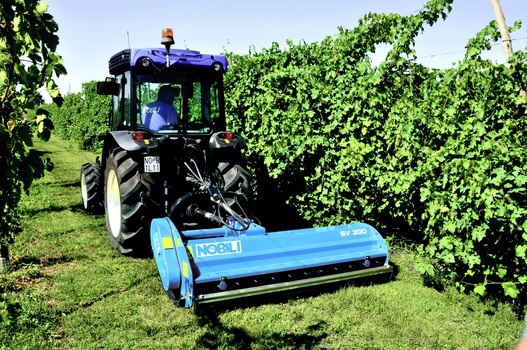

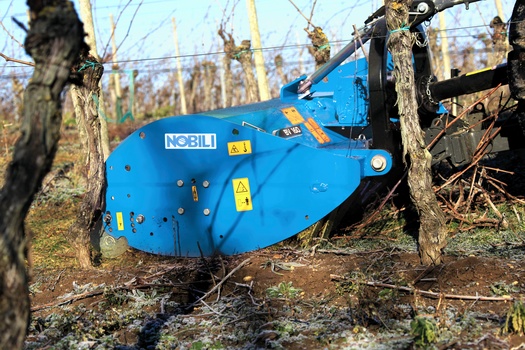

BV serie 100 Mulcher
Specialised mulchers for vineyards and orchards
For the shredding of grass and pruning in vineyards and orchards.BV and BVR mulchers have a chassis made of high-resistance steel, standard equipped with heavy hammers with a new design and three counter-knives. Collecting rakes can be fitted as option to facilitate the shredding of pruning. BV range includes the series 10 and 100. BV series 10 is particularly suitable for mulching vines and it is equipped with a central-fixed headstock. The BV series 100 range is ideal for the shredding of pruning in vineyards and orchards and it is available with mechanical or hydraulic offset. The frontal version of the series 100 is called BVR. The BVR series 100 is available in two versions: with a central-fixed headstock and with mechanical or hydraulic offset. New generation of BV and BVR are designed with a smooth, low-rounded profile, without protrusions ideal for shredding close to the trees easily. Equipped with an inlet opening that has been enlarged to enable a big volume of pruning to enter and to be shredded. The roller with removable ends is adjusted in two positions, forwards and backwards. The forward position allows a higher working speed, while the backward position allows a better shredding of pruning, with or without the collecting rakes. Nobili mulchers are built in compliance with European Regulations.
Technical features | BV 160 | BV 180 | BV 200 | BV 220 | BV 240 | |
---|---|---|---|---|---|---|
Connecting position | Rear | Rear | Rear | Rear | Rear | |
Lateral displacement | mm | 753,5 - 820,5
403,5 - 1170,5 |
849 - 913
399 - 1363 |
943 - 913
493 - 1457 |
1037 - 1101
587 - 1656 |
1120 - 1206
670 - 1656 |
Working width | mm | 1530 | 1718 | 1906 | 2094 | 2282 |
Engine speed pdp | rpm | 540 | 540 | 540 | 540 | 540 |
Tractor horse power | HP | 50-110 | 60-110 | 65-110 | 70-110 | 75-110 |
KW | 37-80 | 44-80 | 48-80 | 51-80 | 55-80 | |
Rotor speed | rpm | 2325 | 2325 | 2325 | 2325 | 2325 |
Pruning residues | < | < 8 cm | < 8 cm | < 8 cm | < 8 cm | < 8 cm |
Blades | 06 | 16 | 18 | 20 | 22 | 24 |
Measures | A | 1675 | 1863 | 2071 | 2259 | 2447 |
B | 1100 | 1100 | 1100 | 1100 | 1100 | |
C | 520 | 520 | 520 | 520 | 520 | |
Weight | KG | 520 | 560 | 620 | 680 | 730 |
