BVL serie 1000 Mulcher

Application

Vineyard and orchard

Category

Manutenzione del verde
Grass, vine and kiwi pruning
Grass, fibrous and wood stalks, bushes
Shoots
Wooded areas

Download the data sheet

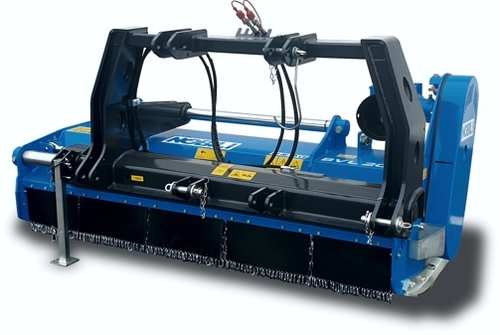

Mulcher for pruning and branches

The BVL series 1000 mulchers are tractor-mounted machines to be fitted to the three-point linkage of the rear tractor lift. Ideal to shred large volumes of pruning with big diameter branches, bushes and green areas.
BVL series 1000 range is built with over dimensioned components, it is provided with heavyduty hammers, three counter knives and thanks to the high cutting speed, it assures an optimal mulching quality of wood.
While working, it is supported by a rear roller with removable ends, with the possibility to mount the collection rakes, as option.
The BVL series 1000 mulchers are equipped with a two working position hitch, which combined with the axial hydraulic offset, allows an important side offset. The double hood assures the maximum robustness and safety at work.

Technical features   BVL 1800 BVL 2000 BVL 2200 BVL 2400
Connecting position Rear Rear Rear Rear
Lateral displacement mm 1155 - 638
640 - 1953
1155 - 817
640 - 2132
1155 - 995
640 - 2510
1155 - 1248
640 - 2763
Working width mm 1721 1900 2078 2331
Engine speed pdp rpm 540 - 1000 540 - 1000 540 - 1000 540 - 1000
Tractor horse power HP 70-130 75-130 80-130 85-130
KW 51-96 55-96 58-96 62-96
Rotor speed rpm 2325 - 2232 2325 - 2232 2325 - 2232 2325 - 2232
Pruning residues < < 10 cm < 10 cm < 10 cm < 10 cm
Blades 06/L 20 24 24 24
Measures A 1947 2127 2307 2550
B 1250 1250 1250 1250
C 1130 1130 1130 1130
Weight KG 1020 1070 1110 1160
