Geo - Antis - Antis V 3000 T Sprayer

Applications

Trellis orchard
Trellis vineyard
Vineyard and kiwi GDC
Canopy vineyard and kiwi plants

Category

Trailed

Type of spraying

Axial fan

Download the data sheet

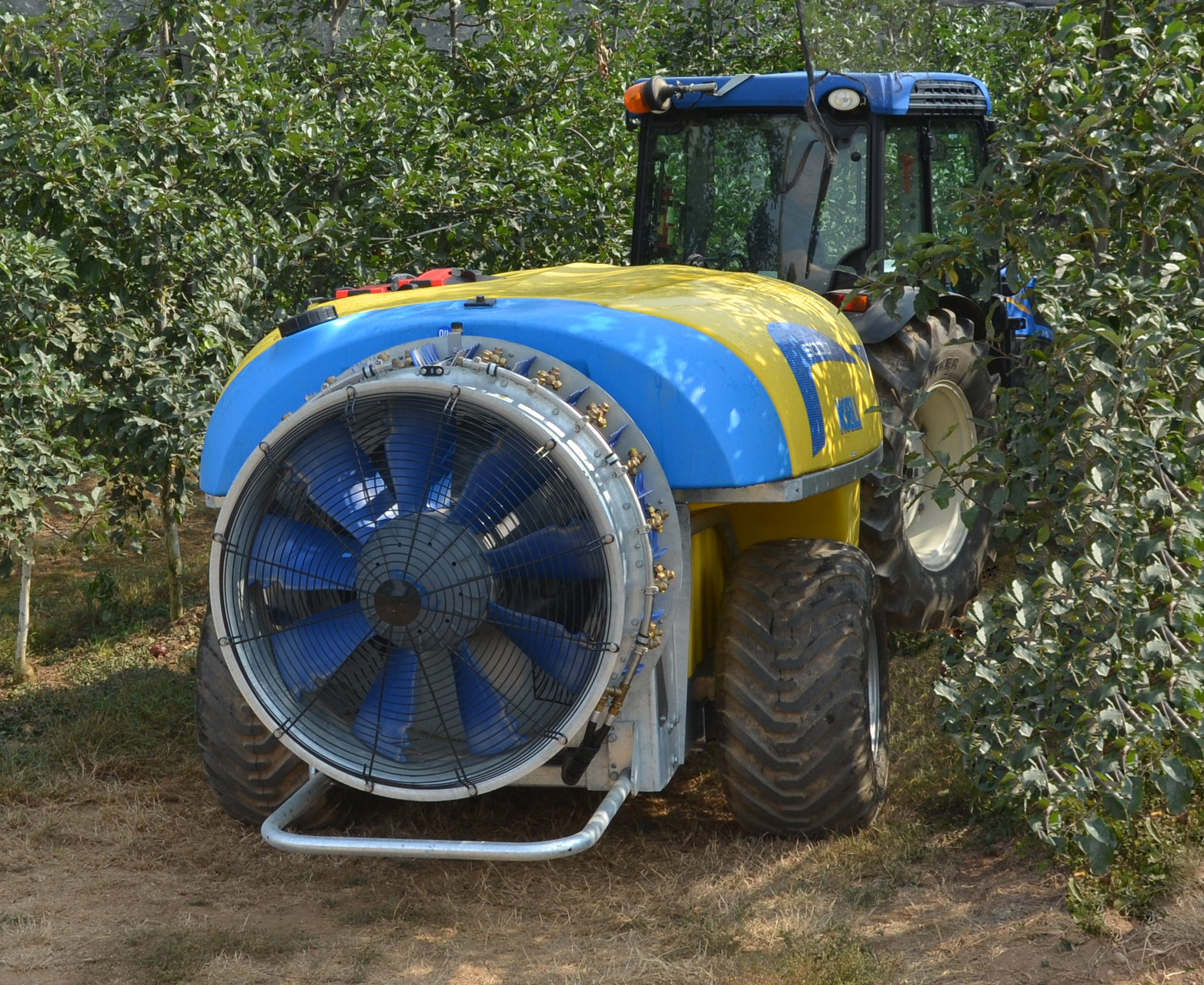

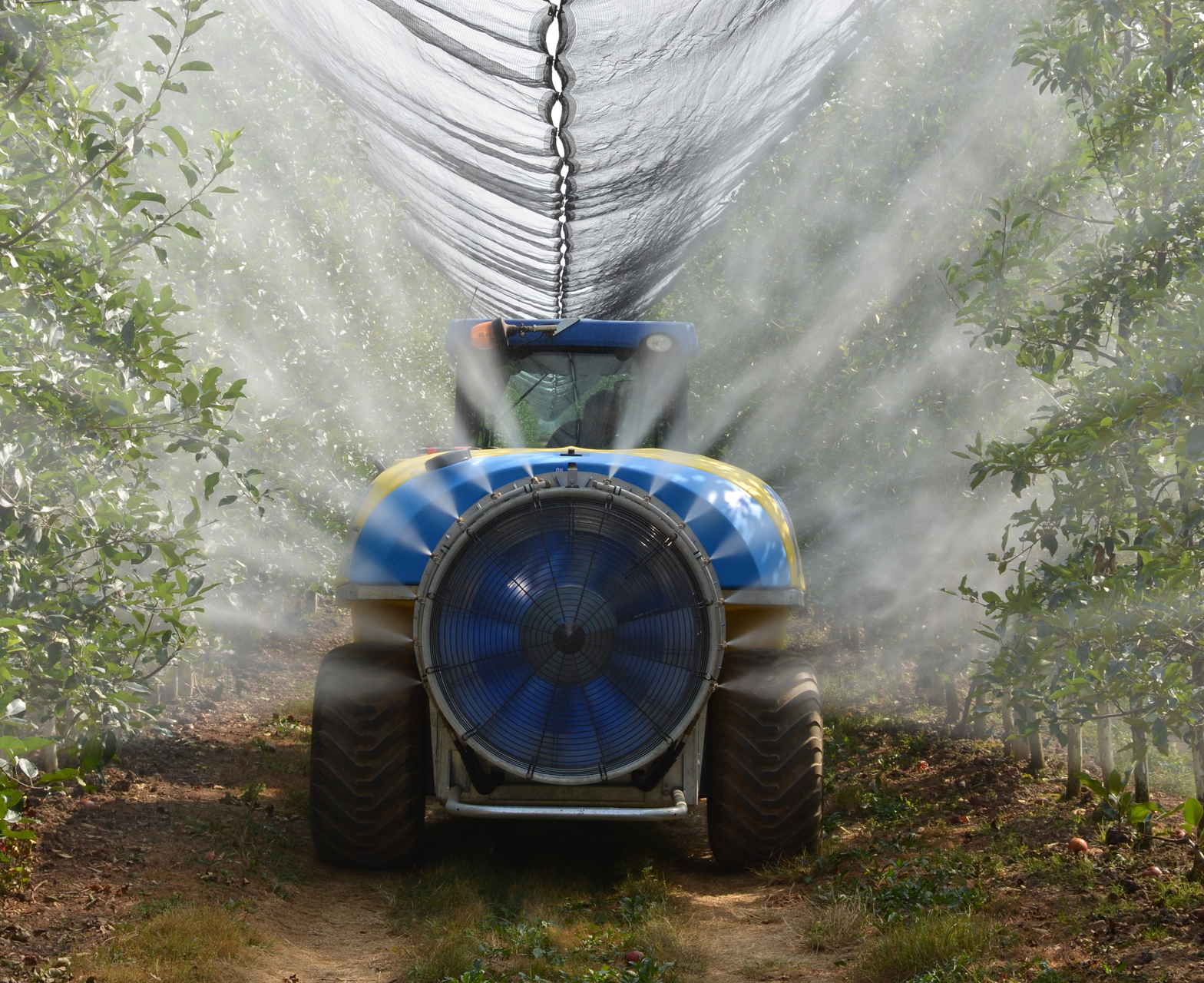

Trailed sprayer for arboriculture, vineyards and orchards

NOBILI presents the answer to the needs of the professional farm that wants to optimize time and resources. A new 3000 litres polyethylene tank is offered with a complete range of accessories and standard equipment adapting the sprayer to all conditions of use. Such as the ergonomic premixer and the possibility to equip the sprayer with vegetation sensors for the automatic opening / closing of the nozzles. Low and compact design ideal also in the most vigorous crops. The robust hot-galvanized double-structure frame, made of high-resistance steel, ensures a long-lasting machine and resistance to chemical aggression of the iron parts. Low-pressure wheels reduce the soil compression and the steering drawbar ensures easy handling. Combined with the fan units model HF or Antis with front suction, they guarantee an optimal coverage with a contemporary reduced power requirement also by high trunk-trees. The front cover and the lower guard keep the spraying control devices protected. Spraying control is realized through electrical systems, from simple electrical pressure adjustment to modern compatible ISOBUS solutions. Finally, NOBILI IOT BOX makes the sprayer compliant with Agriculture 4.0 benefits.

Technical features   GEO HF 90S-3000 T GEO HF 95S-3000 T GEO HF 110S-3000 T Antis 92S-3000 T Antis V 92S-3000 T
Lt. capacity lt 3000 3000 3000 3000 3000
rpm = 540 bar 0-50 litri/1’ 170-200 170-200 170-200 160-170 160-170
Ø 900 950 1100 920 920
rpm 2160 1775 1775 2380 2380
m/sec 44 40 44 44 44
mc/h 62500 75200 95730 45550 45550
Horizontal Range m 4-14 4-16 6-18 3-12 3-12
Vertical Range m 2-10 2-12 2-14 2-9 2-9
Power HP 70-80 70-90 80-100 60-70 60-70
KW 52-59 52-66 59-74 45-52 45-52
Measures A mm 1880 4515 4770 4515 4515
B mm 1650 1880 1880 1880 1880
C mm 1560 1650 1650 1650 2305
Weight KG 1260 1230 1325 1220 1250
