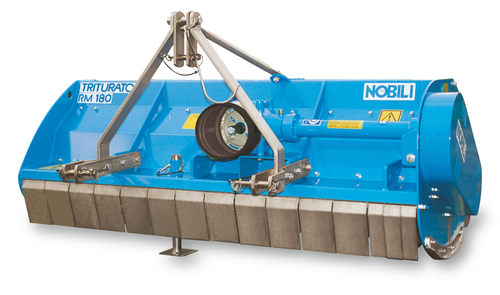

RM 155-211 Mulcher
Multi-purpose mulchers

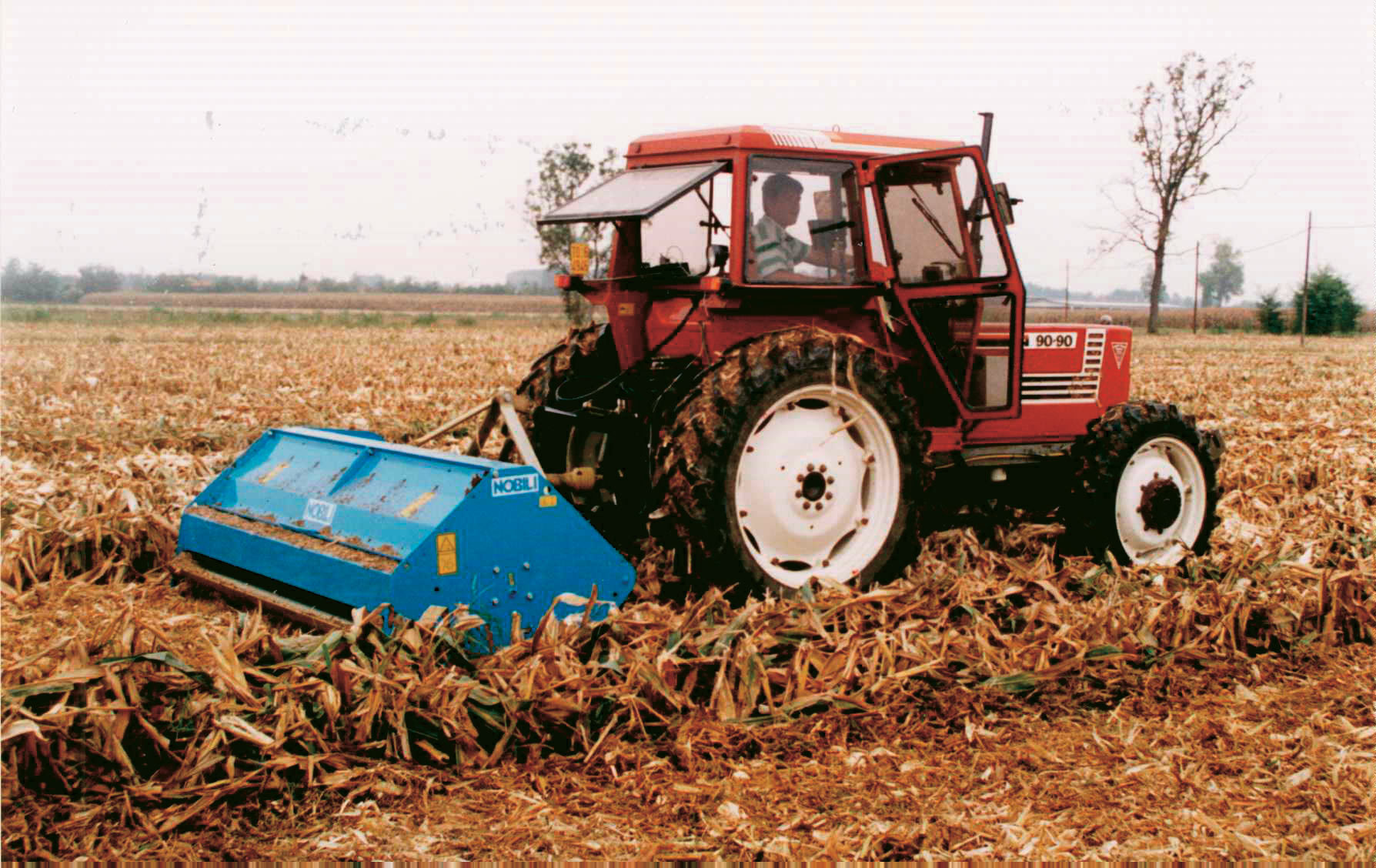

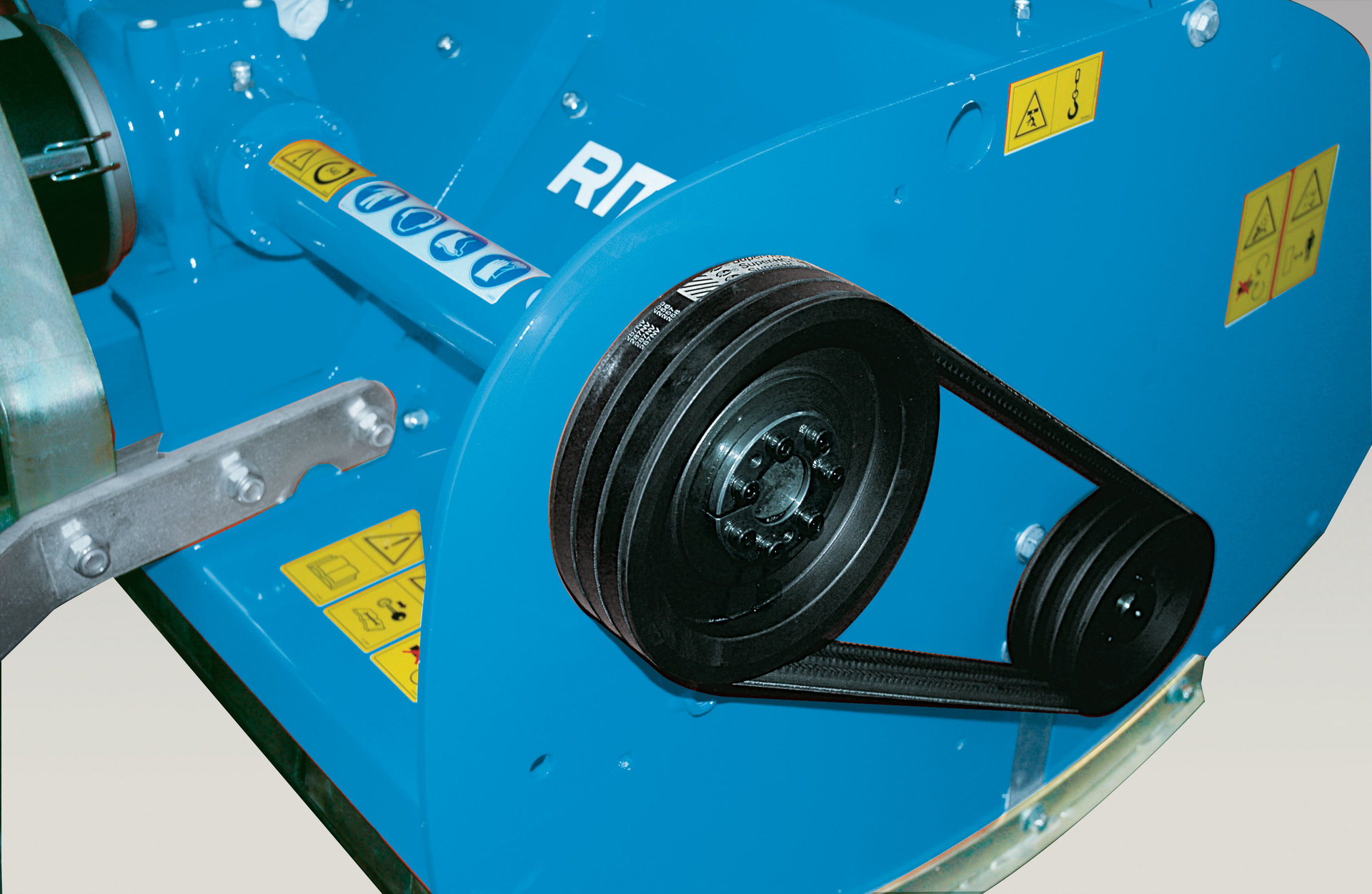

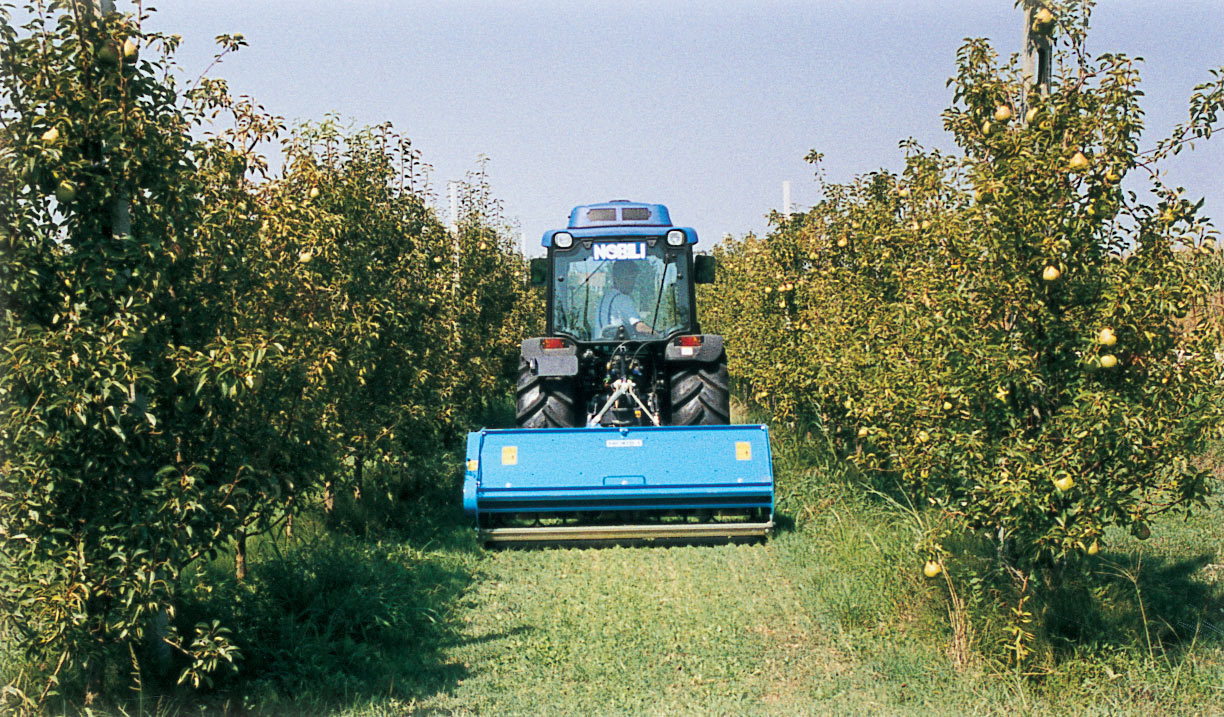

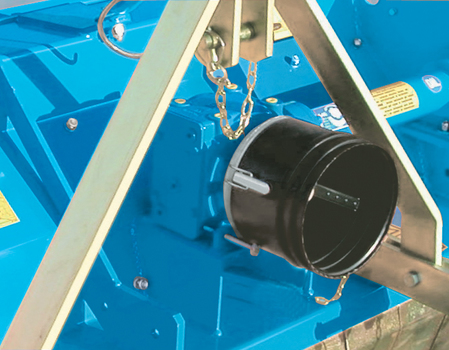

Multi-purpose and sturdy mulchers suitable for the shredding of grass, leaves and vine-cuttings as well as plant residues among orchads - and vineyards rows, for full-feld crops and the upkeeping of green surfaces as well. Tractor mounted mulchers that ft to the three point linkage of the hydraulic lift of the tractor. Equipped with a 8 knives-rows rotor that ensures a more regular rotation cycle, therefore less power absorption and extended belts life as well.According to the different models, available with one or two fxed connections or with hydraulic offset. The models of the RM series are equipped with gearbox with built in overrunning clutch. Working height adjusted by steering wheels, roller with removable bottoms or skids. Available in the models RM 155 - 180 and 211. Working widths: 1536 - 1808 - 2076 mm.
Technical features | RM 155 | RM 180 | RM 211 | |
---|---|---|---|---|
Connecting position | Rear | Rear | Rear | |
Lateral displacement | mm | 768 - 768
393 - 1143 |
904 - 904
504 - 1304 |
1038 - 1038
638 - 1438 |
Working width | mm | 1535 | 1808 | 2076 |
Engine speed pdp | rpm | 540 | 540 | 540 |
Tractor horse power | HP | 50-100 | 60-130 | 70-130 |
KW | 37-74 | 44-96 | 51-96 | |
Rotor speed | rpm | 2203 | 2079 | 2079 |
Pruning residues | < | < 8 cm | < 8 cm | < 8 cm |
Blades | 01 | 36 | 40 | 48 |
06/K | 18 | 20 | 24 | |
012 | 54 | 60 | 72 | |
Measures | A | 1780 | 2055 | 2320 |
B | 1310 | 1325 | 1325 | |
C | 740 | 800 | 800 | |
Weight | KG | 690 | 730 | 775 |
