SDS series 100 Mulcher
Windrow-maker for mulched stubble

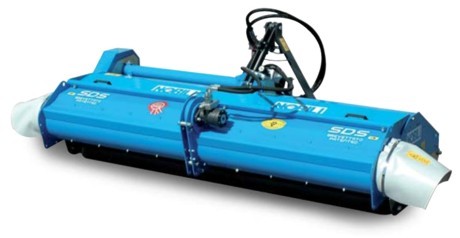

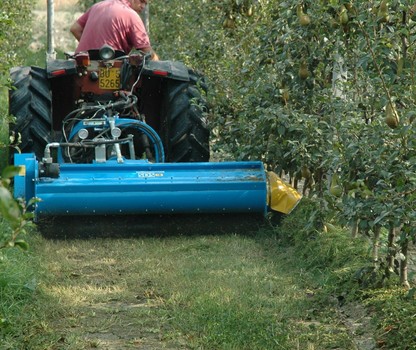

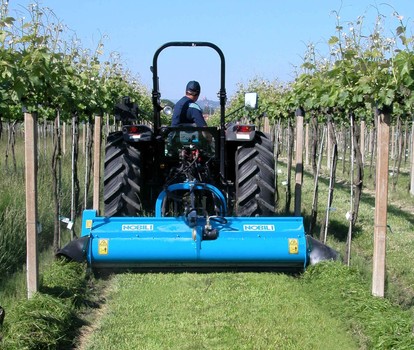

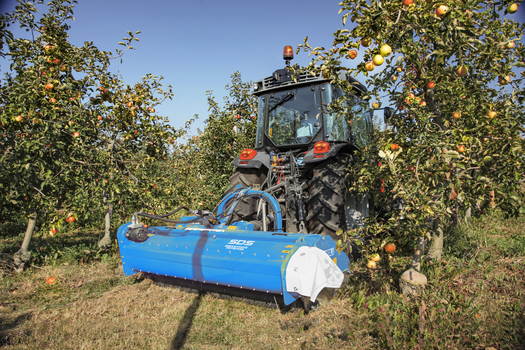

For mulched stubble in grassy vineyards and orchards.The patented SDS, Side Delivery System, is a device that allows to shred grass or grassy crops and discharge the chopped material in symmetrical windrows on both sides below the plants in vineyards and orchards. Many years of experimentation and cooperation with the Universities of Bologna and Florence, have demonstrated that SDS is a valid instrument for managing vineyards and orchards, thanks to the high productivity and the reduction of fertilizing and weed control treatments necessary to cultivations. SDS machines are supported by a roller or wheels adjusting thei working height and it is pos-sible to control the discharging speed (in windrows) to adequate the biomass rate according to the tractor speed and the grass height.SDS is available with single or double auger and with indipendent oil tank on option.
Technical features | SDS 120 DOPPIA | SDS 120 XL DOPPIA | SDS 150 MONO | SDS 150 DOPPIA | SDS 180 MONO | SDS 180 DOPPIA | SDS 210 MONO | SDS 210 DOPPIA | |
---|---|---|---|---|---|---|---|---|---|
Connecting position | Rear | Rear | Rear | Rear | Rear | Rear | Rear | Rear | |
Lateral displacement | mm | 620 - 620 | 620 - 620 | 760 - 760
390 - 1110 |
760 - 760 | 905 - 1050
410 - 1420 |
905 - 905 | 760 - 1340
410 - 1690 |
1050 - 1050 |
Working width | mm | 1240 | 1240 | 1520 | 1520 | 1810 | 1810 | 2100 | 2100 |
Engine speed pdp | rpm | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 |
Tractor horse power | HP | 30-95 | 30-95 | 40-95 | 40-95 | 50-110 | 50-110 | 60-110 | 60-110 |
KW | 22-70 | 22-70 | 29-70 | 29-70 | 37-81 | 37-81 | 44-81 | 44-81 | |
Rotor speed | rpm | 2230 | 2230 | 2230 | 2230 | 2230 | 2230 | 2230 | 2230 |
Blades | 06 | 16 | 16 | 20 | 20 | 24 | 24 | 28 | 28 |
Measures | A | 1520 | 1800 | 1800 | 1800 | 2100 | 2100 | 2380 | 2380 |
B | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | 1380 | |
C | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | |
Weight | KG | 440 | 450 | 470 | 480 | 530 | 530 | 595 | 595 |
