SDS series 1000 Mulcher

Application

Vineyard and orchard

Category

Mulched stubble method

Download the data sheet

For mulched stubble in grassy vineyards, orchards and olive groves

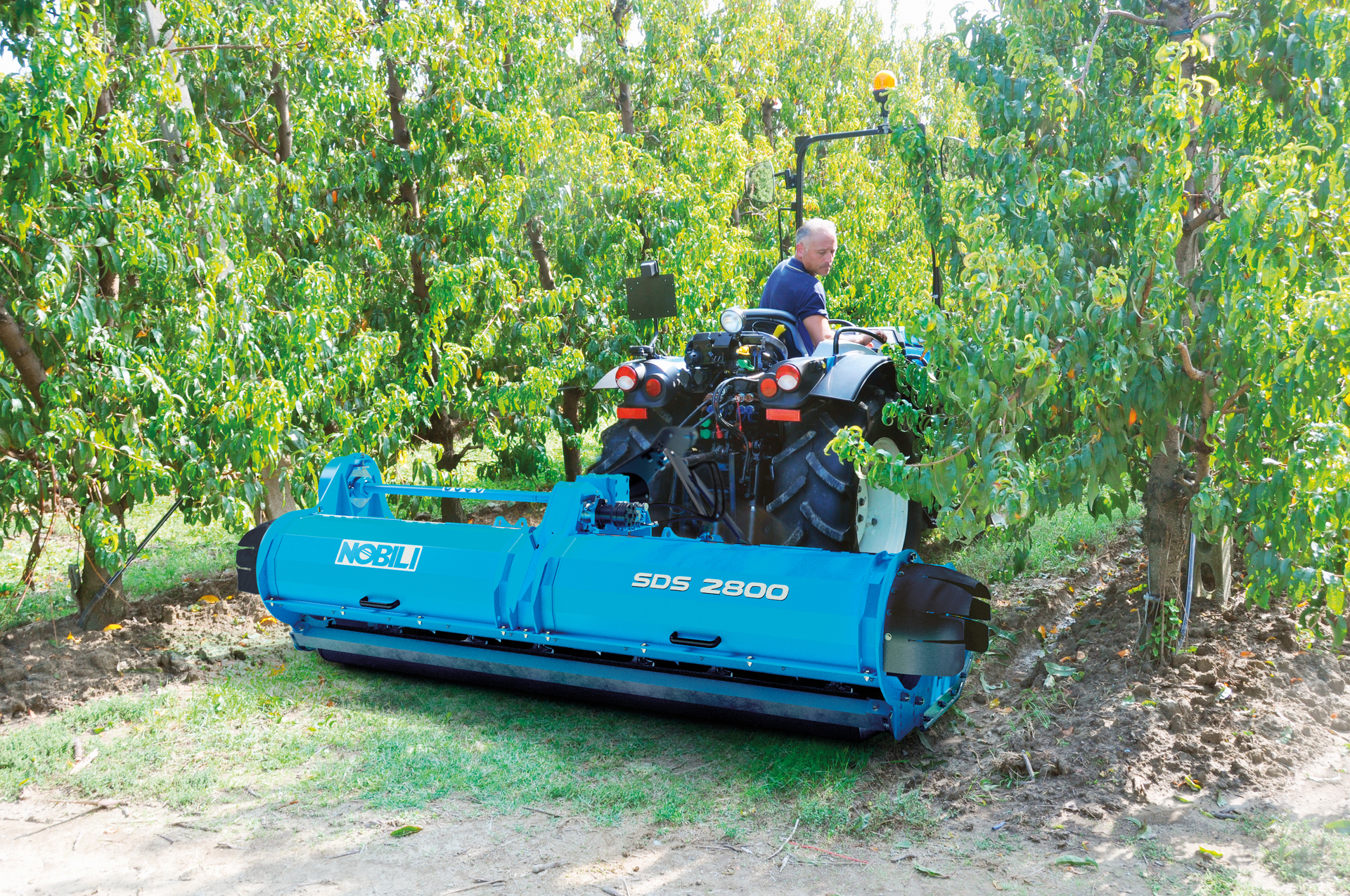

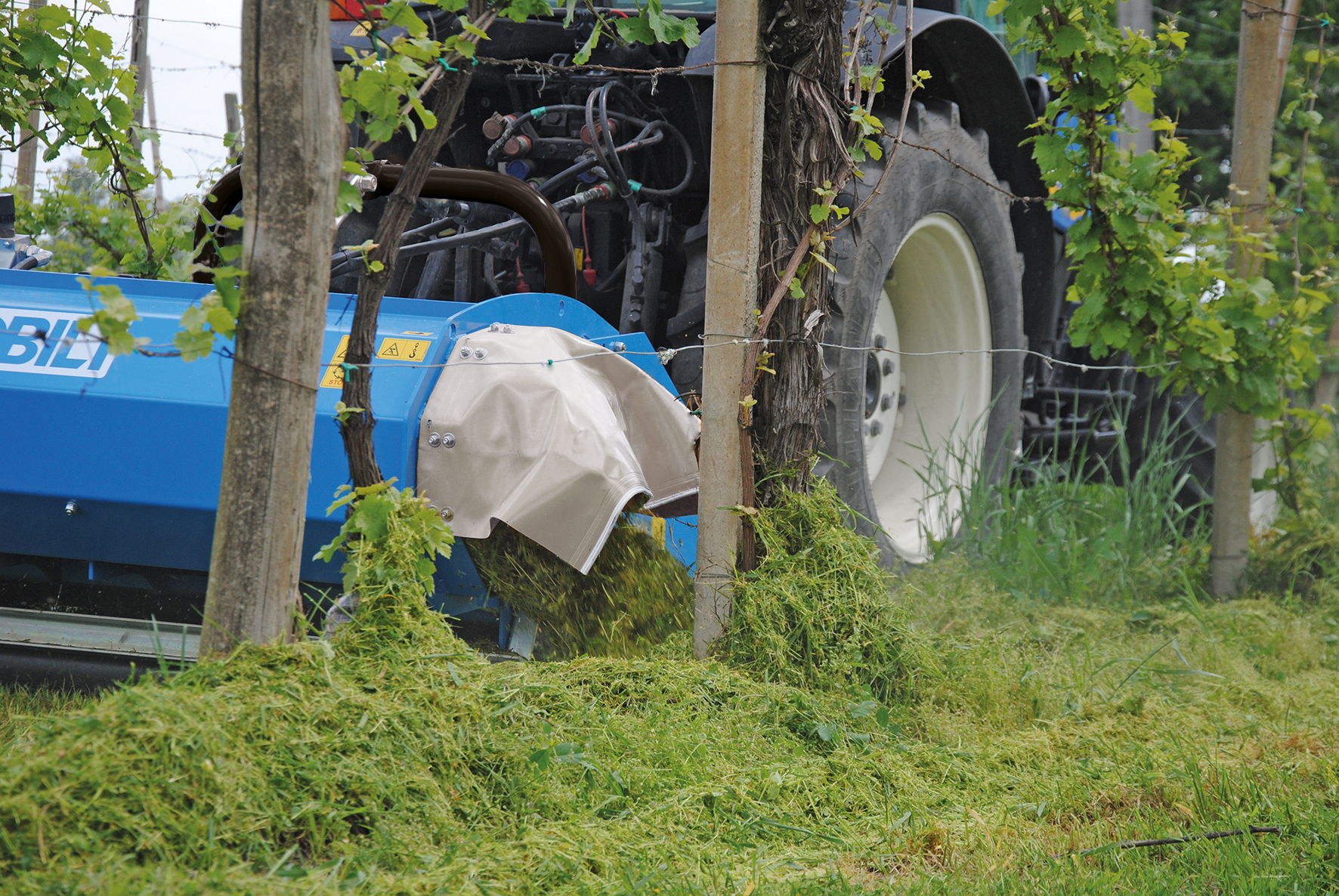

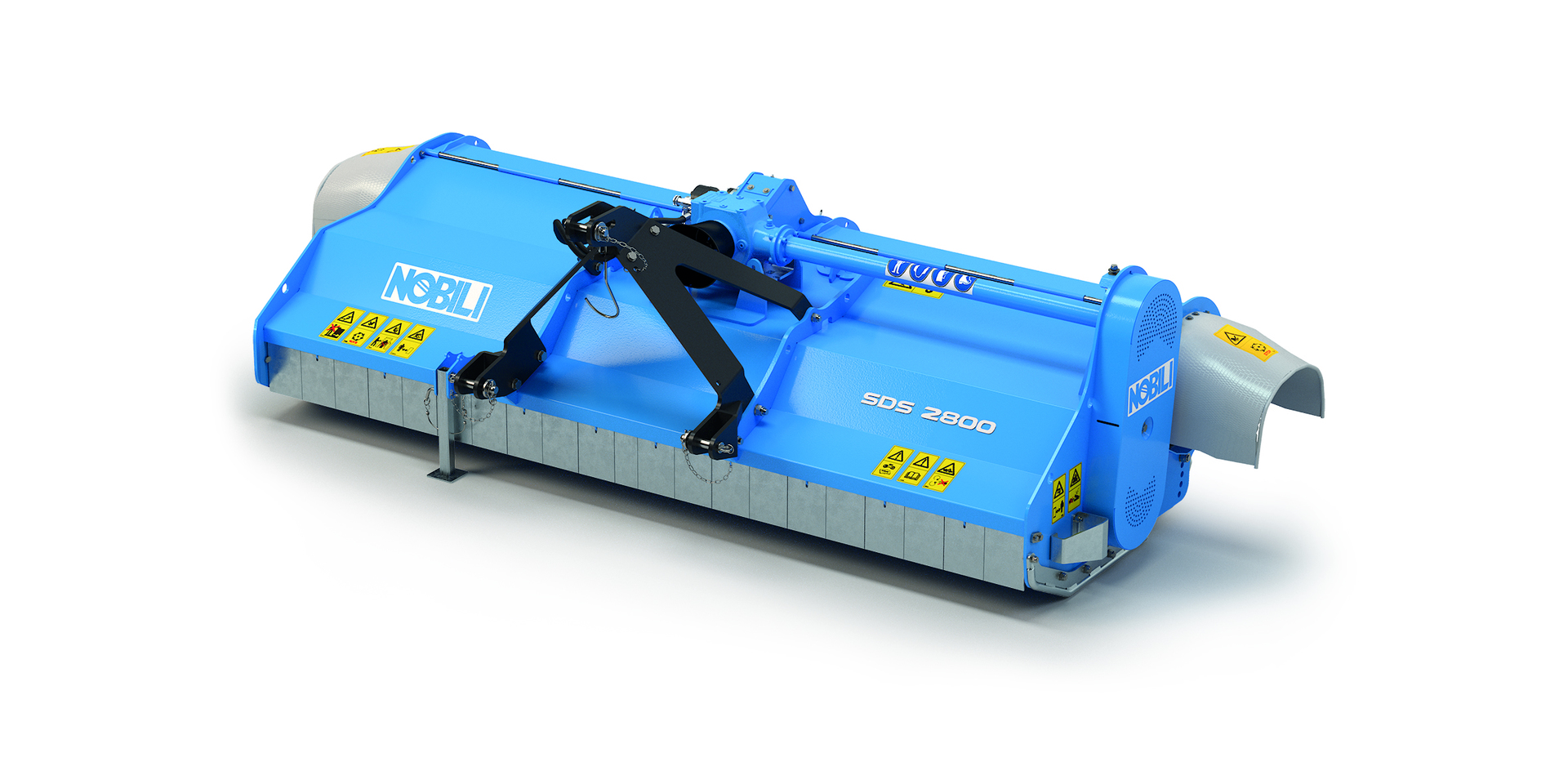

The new range SDS series 1000 is conceived for the mulching of inter-row crops and side discharge under the trees, even in presence of pruning residues, keeping the inter-row area clean. The machines are characterized by the double auger of big dimension and the wide front opening: this allows the machine to shred big volumes of material and to create symmetrical windrows on both sides of the row in a single pass. The mulchers SDS series 1000 are supported by a roller with removable ends, adjusting the working height; equipped with hydraulic adjustment of the augers speed to adapt the biomass flow rate to the tractor speed and to the volume of the material to shred. Equipped with two hoods facilitating both cleaning and maintenance of machine. Provided with 2-cat.  attachments to be fitted to the rear lift arms of the tractor. Available in the version with central fixed hitch and double-sided auger for the discharge to both row sides. Working widths of 2600, 2800 and 3100 mm.

Technical features   SDS 2800 SDS 3100
Connecting position Rear Rear
Working width mm 2800 3100
Engine speed pdp rpm 540/1000 540/1000
Tractor horse power HP 80-150 90-150
KW 59-110 66-110
Rotor speed rpm 2203/2356 2203/2356
Blades 06 36 36
Measures A 3070 3370
B 1450 1450
C 720 720
Weight KG 1460 1620
