TL Mulcher
Mulcher suitable for low-power tractors

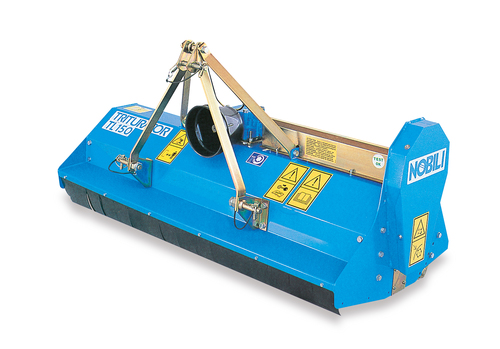

The NOBILI TL and TLP TRITURATORS are tractor-mounted machines, to be fitted to the three-point linkage of the front or rear hydraulic lift of small tractors. In working position, the TL and TLP mulchers are supported by roller that controls the working height. The rotor is equipped with interchangeable swinging knives of different shapes and sizes, to adapt the mulcher to various working needs. The working widths are 120 - 150 - 180 cm for the TL range, and 120 - 135 - 160 cm for the TLP range. It is possible to have, upon request, the version with the hydraulic offset. The mulcher is constructed in compliance with the European regulations.Technical features | TL 120 | TL 150 | TL 180 | |
---|---|---|---|---|
Connecting position | Reversibile | Reversibile | Reversibile | |

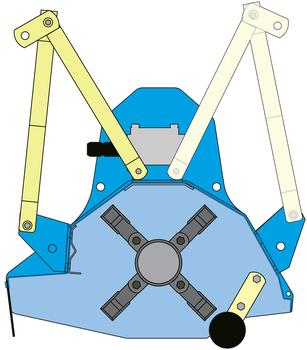

Lateral displacement | mm | 603 - 603 | 735 - 735
455 - 1015 |
735 - 1045
455 - 1325 |
Working width | mm | 1200 | 1500 | 1800 |
Engine speed pdp | rpm | 540 | 540 | 540 |
Tractor horse power | HP | 15-30 | 20-30 | 25-35 |
KW | 11-22 | 15-22 | 18-26 | |
Rotor speed | rpm | 2309 | 2309 | 2309 |
Blades | 04 | 24 | 30 | 36 |
08 | 48 | 60 | 72 | |
Measures | A | 1352 | 1605 | 1922 |
B | 720 | 720 | 720 | |
C | 390 | 390 | 390 | |
Weight | KG | 150 | 185 | 205 |
