TRP CV/CL Mulcher

Application

Vineyard and orchard

Category

Thick pruning
Shoots

Download the data sheet

Trincia per sarmenti di potatura

For shredding and collection of pruning residues.

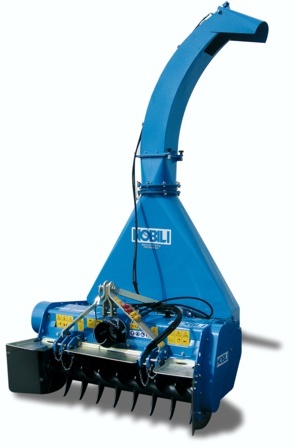

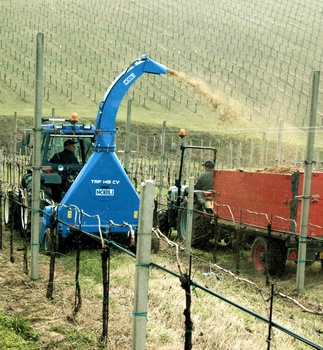

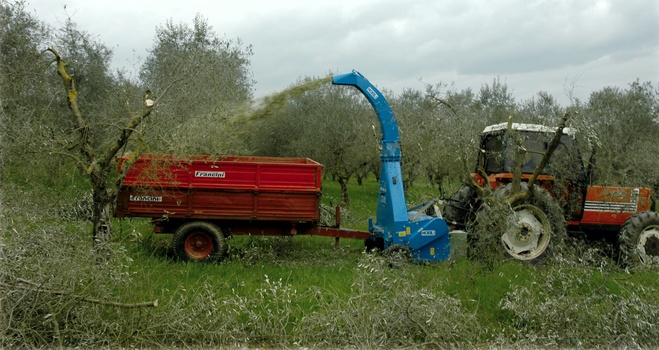

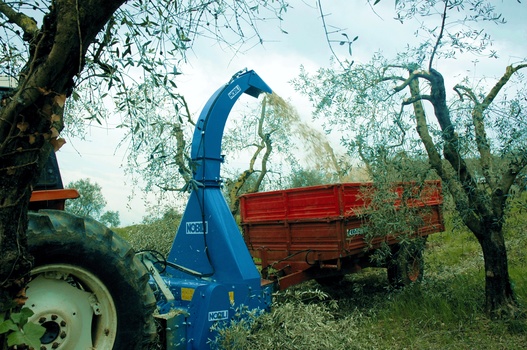

TRP CV/CL mulchers are tractor-mounted machines to be fitted to the rear tractor three-point linkage. Ideal for the collection and shredding of pruning in vineyards, orchards and olive groves. TRP-CV mulchers are equipped with a vertical conveyor – with adjustable ending part – specially conceived for delivering the mulched material into a trailer driven by the same tractor or by another one on the sideways row.

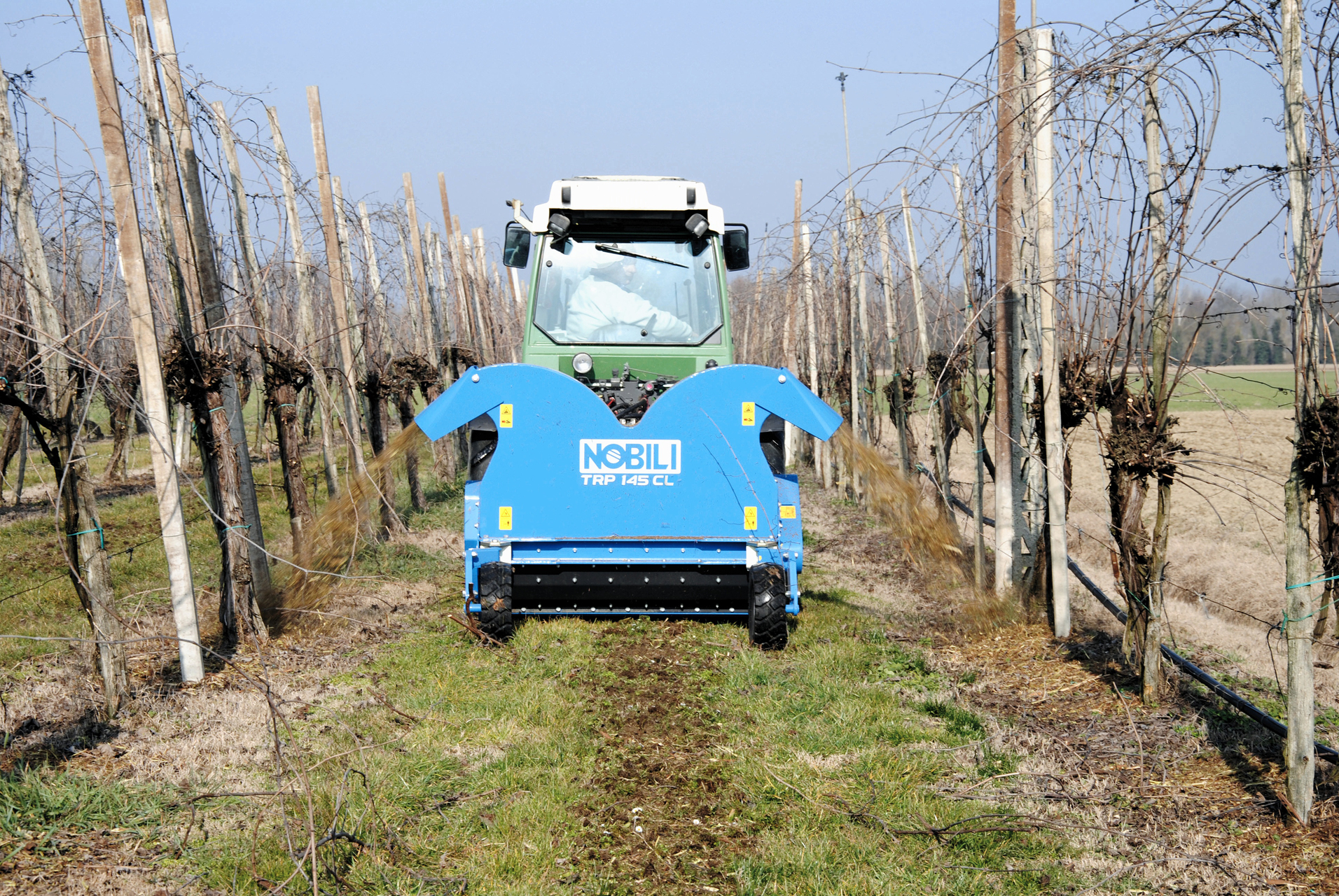

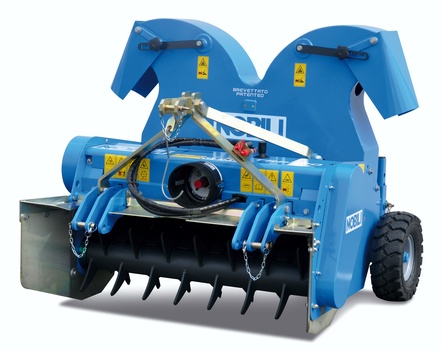

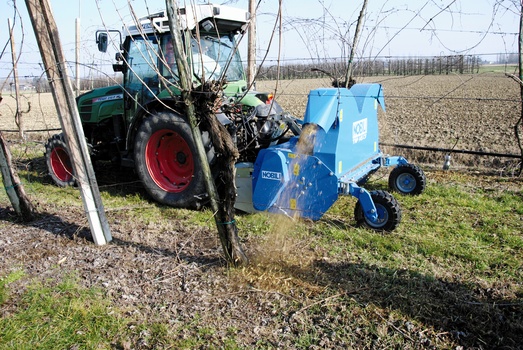

TRP-CL mulchers thanks to the bi-lateral conveyor deliver the mulched material in side windrows, below the plant trunks.
TRP CV/CL range is equipped with a pick-up device – for pruning lifting – avoiding grass, stones and soil entering into the mulching chamber. TRP CV/CL mulchers can be equipped with roller or wheels adjusting the working height. Nobili mulchers are built in compliance with European regulations.

To view this video, please accept marketing cookies.
Technical features   TRP 120 CL TRP 145 CL TRP 145 CV TRP 175 CV
Connecting position Rear Rear Rear Rear
Lateral displacement mm Attacco centrale Attacco centrale Attacco centrale Attacco centrale
Working width mm 1200 1450 1450 1730
Engine speed pdp rpm 540/1000 540/1000 540/1000 540/1000
Tractor horse power HP 60-120 70-120 80-130 90-130
KW 44-88 51-88 59-96 66-96
Rotor speed rpm 2600 2600 2600 2600
Pruning residues < < 10 cm < 10 cm < 10 cm < 10 cm
Blades 06 16 20 20 24
Measures A 1450-1650 1710-1900 1710-1900 1990-2180
B 1400 1400 1400 1400
C 1400 1400 3400 3400
Weight KG 900 1000 1000 1100

Pruning among the rows are causing you problems?
RELY ON NOBILI MULCHERS FOR VINEYARDS AND ORCHARDS

contact us
